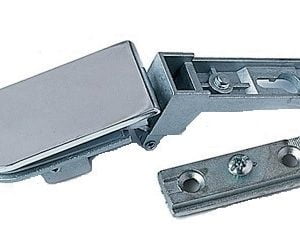

Hinges for glass doors – CM.4692
- PRODUCT INFORMATION Opening angle 100°. For mounting you need to make two holes in the glass: a) the hole for the fixing-screw diam.11; b) the hole for the hinge joint diam.23. Hinge: height H1=30 mm, length L1=62 mm, length L2=60 mm. Mounting plate: height H=16 mm, length L=47 mm. For glass thickness 4/5 mm. ORDER INFORMATION
- Select options
Hinges for glass doors – CM.4680
- PRODUCT INFORMATION Finish: Bright chrome Couple of snap hinges for full inset glass doors. For left and for right door, Height H=47 mm, Width L=42 mm, Glass thickness S=7 mm. ORDER INFORMATION
- Add to basket
Hinges for glass doors – 151272
- PRODUCT INFORMATION Opening angle 110°. For inset glass doors. Material:Steel, cup: Plastic. For plug fitting into base panel, for direct fixing to glass door with screw. For glass thickness max. 4.7 mm. For door width max. 400 mm. For door height max. 600 mm. Without spring. Price for Pair (2 pcs) ORDER INFORMATION
- Add to basket
Hinges for glass doors 141610
- PRODUCT INFORMATION For inset glass doors. Material: zinc alloy. For door height max. 800 mm. For door width max. 400 mm. For glass thickness max. 6.5 mm. With cup, with rubber buffer. For plug fitting into base panel, for direct fixing to glass door with screw. Without spring. No drilling in glass necessary. ORDER INFORMATION
- Select options
GRASS NEXIS Click-on MIRROR-15° – mirror and glass door hinge
- PRODUCT INFORMATION 128° opening angle. Soft-close compatible. Fix by gluing stainless steel adapter to the door. Use cam to connect hinge to the adapter. Quick final assembly without drilling into the glass. 3-dimensional adjustment with appropriate mounting plate For Mirror adapter stainless steel and Cover cap for gluing see Accessories for GRASS NEXIS Click-on MIRROR ORDER INFORMATION
- Select options
GRASS TIOMOS MIRRO 125° mirror hinge
- PRODUCT INFORMATION 125° opening angle, with integrated damper. Fastening through door-side gluing of a stainless steel adapter. Connection of the hinge to the adapter using a cam. Quick final assembly without glass drilling. 4-dimensional adjustment with appropriate mounting plate. High overlay up to 19 mm. ORDER INFORMATION
- Select options
