HAWA FOLDING CONCEPTA 25

PRODUCT INFORMATION

  • Maximum door weight: 25 kg.
  • Door width: 300–700 mm, height: 1250–2600 mm, thickness: 19–28 mm.
  • Door is automatically pulled into pocket.
  • Free access to the entire cabinet front when doors are opened.
  • Room-high designs without a cabinet base allow for recess enclosures and walk-in cabinets with uninterrupted flooring. Adjustments are made from the front.
  • This product is suitable wherever variable use of space and unobstructed access must leave an impression of order, for example for a private office in a bedroom, kitchen appliances, or bathroom.
  • Unique scissor technology accommodates large and heavy doors.
  • The connector profile makes it easier to assemble cabinet designs with doors striking against the top and bottom cabinet sections. Certified LGA.

NOTES

HAWA planning tool.

 Download catalog page

ORDER INFORMATION

Clear

£48.40£1,858.24 (ex. VAT)

All Variations

SKUPriceDescriptionQuantityAdd to Cart
HAWA25866£1,566.39 (ex. VAT)Set for one 1250-1850 mm height doors, left side, aluminium color
HAWA25867£1,566.39 (ex. VAT)Set for one 1250-1850 mm height doors, right side, aluminium color
HAWA25868£1,684.83 (ex. VAT)Set for one 1851-2600 mm height doors, left side, aluminium color
HAWA25869£1,684.83 (ex. VAT)Set for one 1851-2600 mm height doors, right side, aluminium color
HAWA24004£163.49 (ex. VAT)The external facade of the alignment profile, L=1300 mm, aluminium color
HAWA24006£48.40 (ex. VAT)Magnetic centring element which cleverly hold the doors in position
HAWA24322£268.22 (ex. VAT)The upper rail fastening profile (two double-door system, where there is no central cabinet partitions)
HAWA25870£1,718.13 (ex. VAT)Set for one 1250-1850 mm height doors, left side, black color
HAWA25871£1,718.13 (ex. VAT)Set for one 1250-1850 mm height doors, right side, black color
HAWA25872£1,858.24 (ex. VAT)Set for one 1851-2600 mm height doors, left side, black color
HAWA25873£1,858.24 (ex. VAT)Set for one 1851-2600 mm height doors, right side, black color
HAWA25479£187.34 (ex. VAT)The external facade of the alignment profile, L=1300 mm, black color

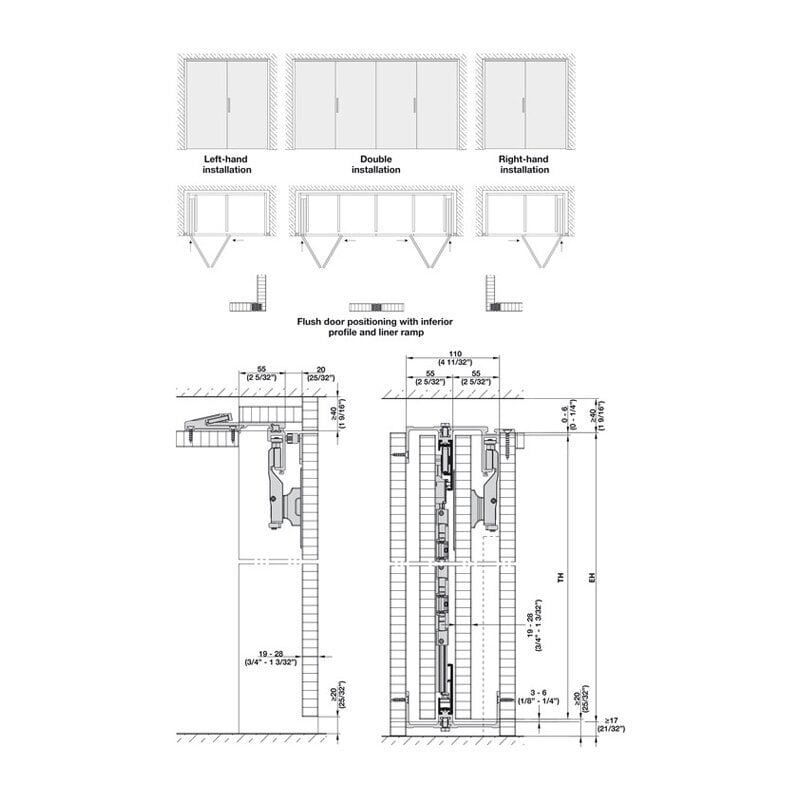

Installation and fine adjustment:
