Hinges for glass doors – CM.4692

PRODUCT INFORMATION

  • Opening angle 100°.
  • For mounting you need to make two holes in the glass:
  •    a) the hole for the fixing-screw diam.11;
  •    b) the hole for the hinge joint diam.23.

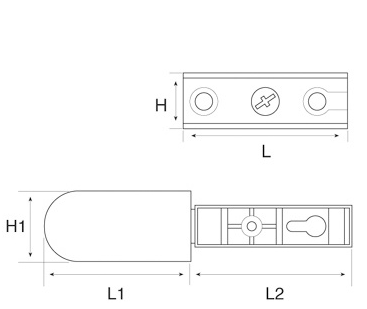

  • Hinge: height H1=30 mm, length L1=62 mm, length L2=60 mm.
  • Mounting plate: height H=16 mm, length L=47 mm.
  • For glass thickness 4/5 mm.

ORDER INFORMATION

Clear

£0.91£15.04 (ex. VAT)

SKU: N/A Category:

All Variations

SKUPriceTypeFinishQuantityAdd to Cart
CM.4692.ZLV£15.04 (ex. VAT)Glass door hingeBrassed
CM.4692.CR£13.68 (ex. VAT)Glass door hingeChrome
CM.4691.ZN£0.91 (ex. VAT)Mounting plateZinc plated
