INTEGRATO D

PRODUCT INFORMATION

  • With pins for 5 mm hole.

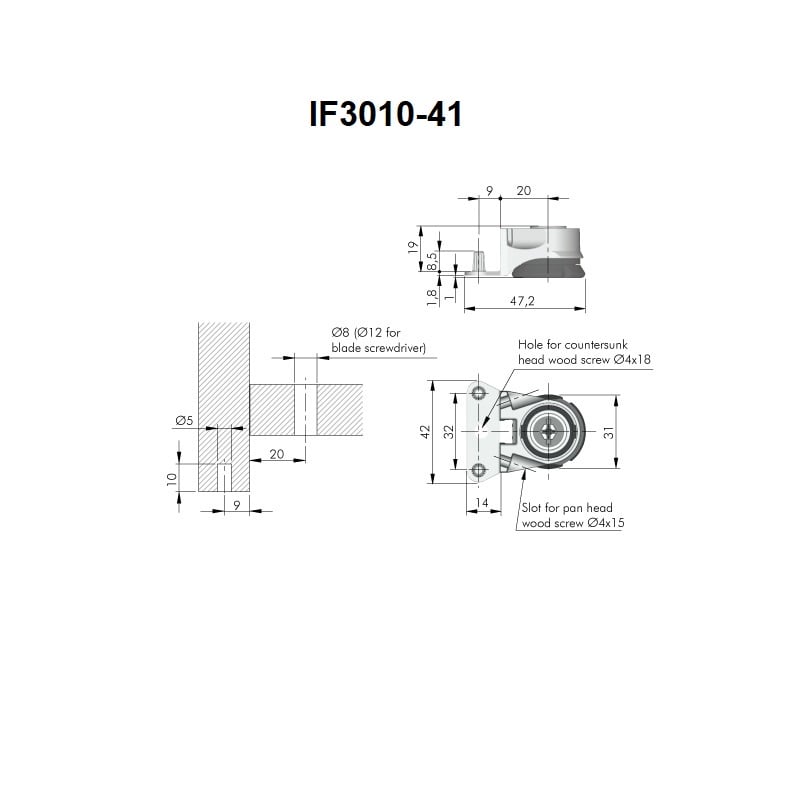

  • Suitable for modular furniture with plinth of min. 20mm (IF3010-41) or min. 38,5mm (IF3010-42).
  • Capable of supporting a 175 kg load each.
  • The zinc alloy die-cast foot, is provided with an indipen- dent engineering plastic glide in order to make the adjustment easier and to prevent the scratching of the floor too.
  • Height adjustment: 0-12 mm (IF3010-41) or  0-25 mm (IF3010-42).
  • A Ø8mm through hole in the furniture bottom, allows to adjust the leveller from the above, by using a S6mm allen  wrench or both cross and blade screwdriver.

Optional extras: caps Ø8mm hole – see. section  “Fastening parts, fasteners, connectors”

Download mounting instructions.

ORDER INFORMATION

Clear

£1.16£1.45 (ex. VAT)

SKU: N/A Category: Tag:
